IMX477 IR-CUT 12.3MP Camera (A), Applicable for Raspberry Pi / Jetson Nano
₹8,049.00 *
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: Waveshare-29574
IMX477 IR-CUT camera module IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson Nano... more
Product information "IMX477 IR-CUT 12.3MP Camera (A), Applicable for Raspberry Pi / Jetson Nano"

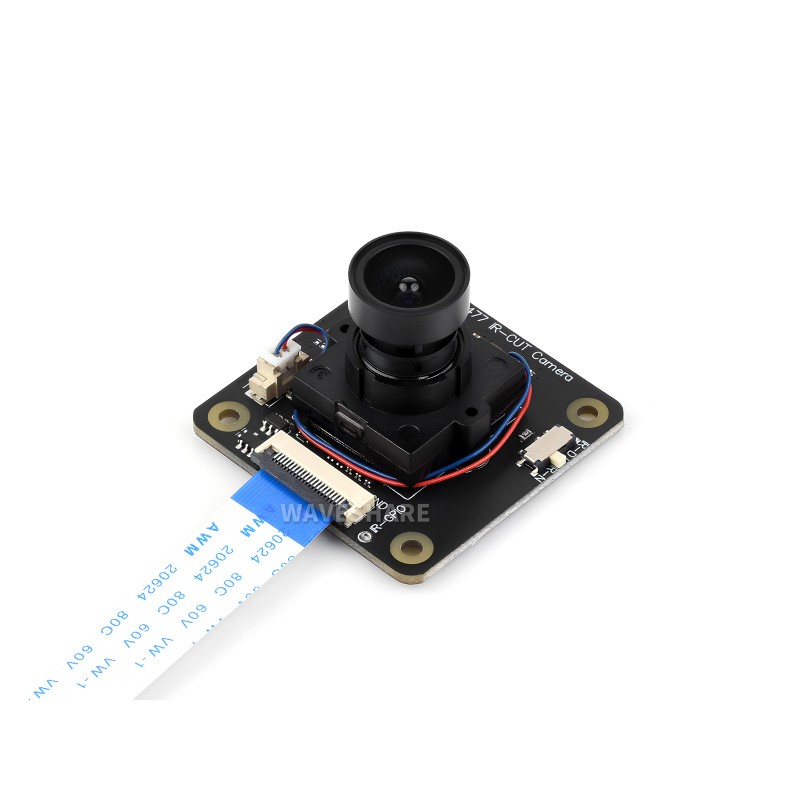

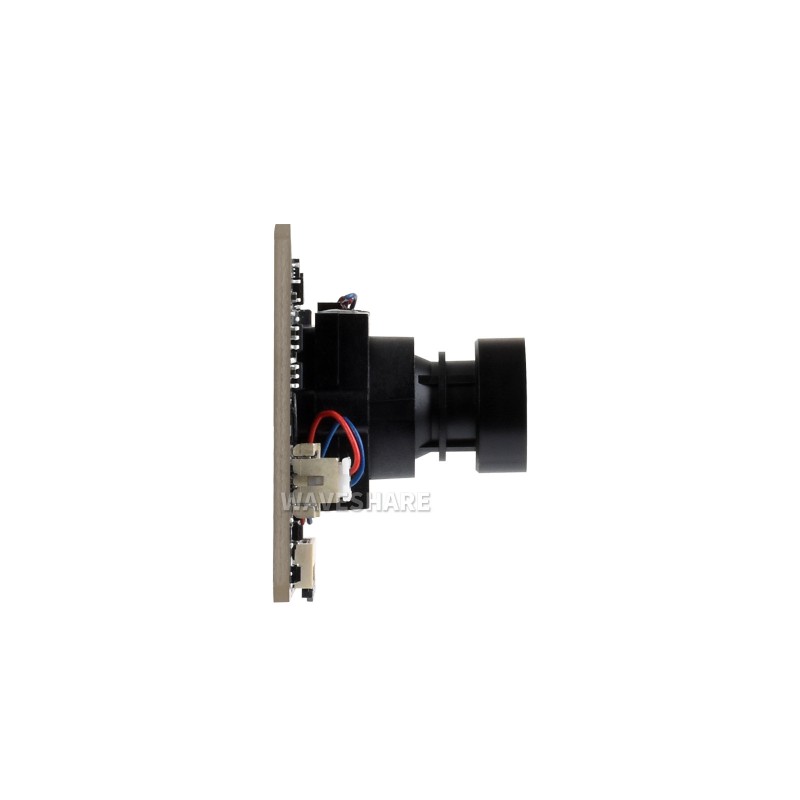

IMX477 IR-CUT camera module
IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson Nano Series Boards
Specifications
| Sensor | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| Pixel size | 1.55µm (H) × 1.55µm (V) | |
| Camera | Aperture (F) | 2.0 |
| Focal length (BFL) | 3.95 | |
| Field of view (FOV) | 90°(D) | |
| Distortion | <12.5% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Ultra High Resolution
The IMX477 sensor supports up to 12.3MP resolution, capturing every detail in the picture
Built-in IR-CUT for all-day use
allows the user to switch filter freely according to the usage scenario
* Note: the infrared light is required for night vision function and needs to be purchased separately.
Multiple Motherboards Support
Compatible With Raspberry Pi and Jetson Series Boards (Specific driver is required)

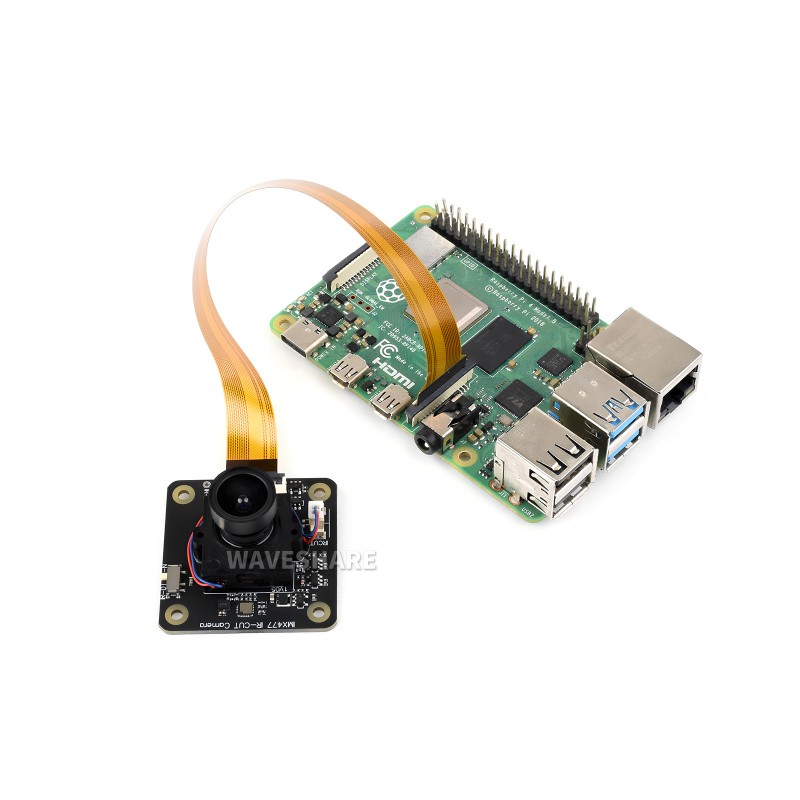

Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM4 / CM5 IO Board
Connecting with Zero 2 W
Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, and Jetson Orin Kit are NOT included.
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | CMOS Size | IR-CUT Filter | Lens Support | FoV (°) | Aper-ture (F) | Focal Length (mm) | Dimen-sions (mm) | For use with |
|---|---|---|---|---|---|---|---|---|---|---|
| Raspberry Pi HQ Camera | 12.3MP | IMX477 | 7.9mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
| IMX477 12.3MP Camera | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi HQ Camera M12 | M12 | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 | ||||
| IMX477 IR-CUT Camera (A) | 90 | 2.0 | 3.95 | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| IMX477-160 12.3MP Camera | 160 | 2.2 | 2.75 | 25*24 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi Global Shutter Camera | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
