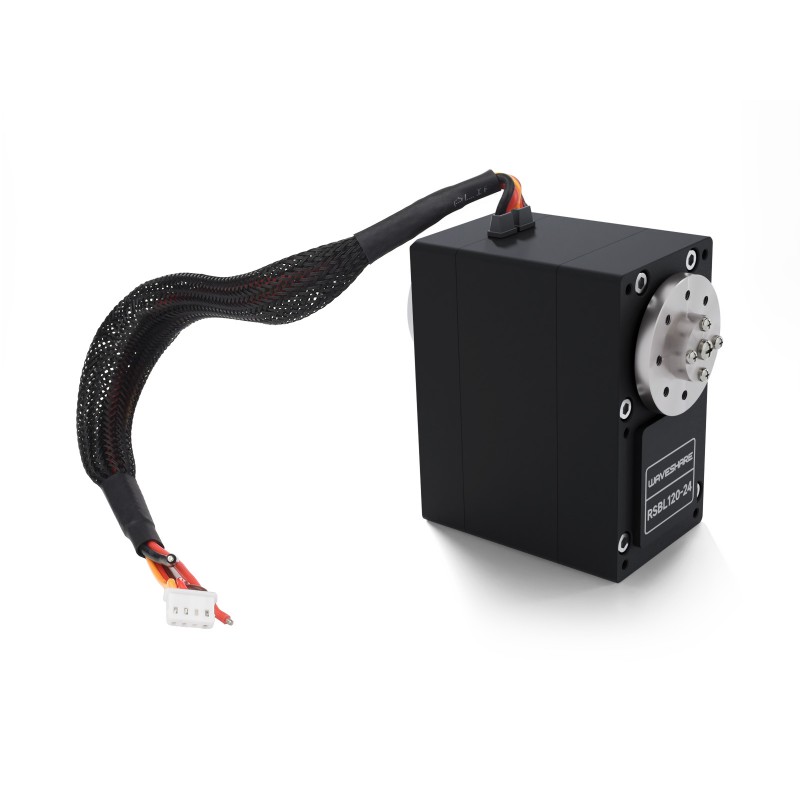

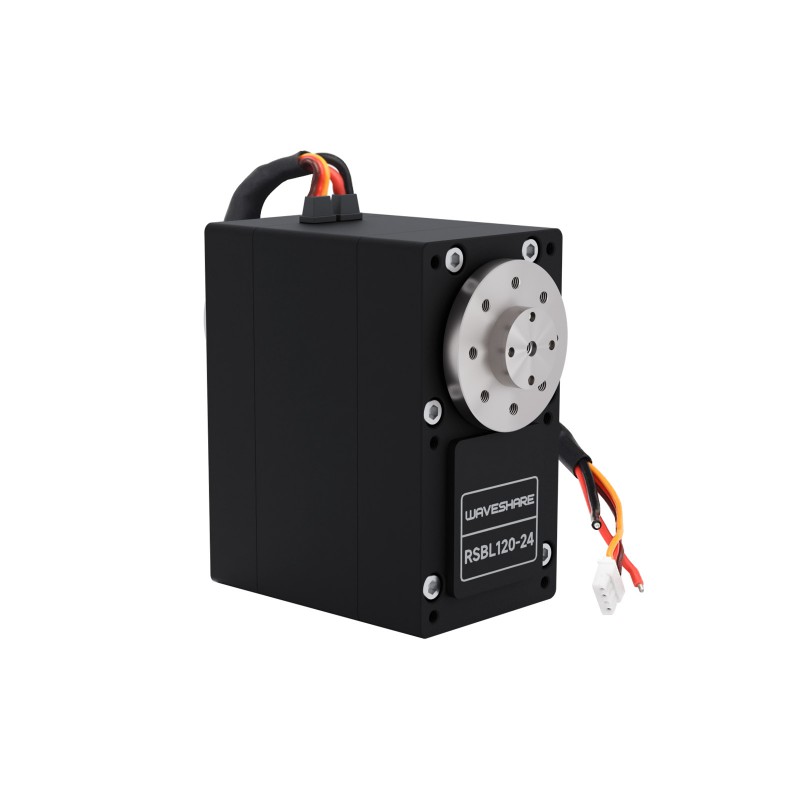

120kg.cm RSBL120-24 Servo Motor
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: Waveshare-27165
Aluminum Alloy Case, Brushless Motor, with 360° Magnetic Encoder
| Product model | RSBL120-24 |
|---|---|
| Torque | 120kg.cm@24V |
| Rotation angle | 360° (0~4095) |
| Position sensor resolution | 0.088° (360°/4096) |
| Mechanism limit angle | No limit |
| Working voltage | 9 ~ 24 V (typ. 24V) |
| Gear | high precision steel gear (reduction ratio 1:232) |
| No-load speed | 0.2sec/60degree 50RPM@24V |
| Encoder type | 360° magnetic encoder |
| ID range | 1 ~ 253 (1 by default) |
| Baudrate | 38400bps ~ 1Mbps (1Mbps by default) |
| No-load current | 200mA |
| Locked-rotor current | 4A |
| Kt | 30kg.cm/A |
| weight | 485g |
| Feedback | Position, Load, Speed, Input Voltage, Current, Temperature |
To improve the heat tolerance, size stability, rigidity, and mechanical performance of the case
to ensure the strength and durability of servo motor power transmission
Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the motor lifetime is effectively extended.
Up To 120kg.Cm Torque On 24V Voltage, Suitable For applications such as industrial equipments and robotics, etc. it is a ideal choice for Large torque solution projects
Note: the robot arm in the picture above is not included, but we provide its open-source drawing on the wiki. Please refer to the Package Content for detailed part list
The speed and acceleration values are settable to make the motion effect softer and reduce impact from inertia
360° installation at any position, one button to set the current position as middle position. Easy to install and debug
Click Release to unlock, then turn the servo motor to the middle position where you want to set
Click Set Middle Position then confirm.
Turn the servo motor to any angle, then click Middle, and the servo motor will automatically return to the middle position initially set.
The servo motor Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current and Temperature In Real Time, with unloading force protection when the servo motor is overheated or overloaded
suitable for more application scenarios
Angle servo mode
Default mode, the angle position is controllable at 0~360° degrees
Speed closed-loop mode
Intelligently control and maintain speed when the load changes
Step mode
Can perform step motion relative to the current position
Supports angle position control in both positive and negative directions up to 7 loops under the default precision setting, but the number of loops will not be saved in case of power loss. Lowering the angle resolution can double the number of control loops

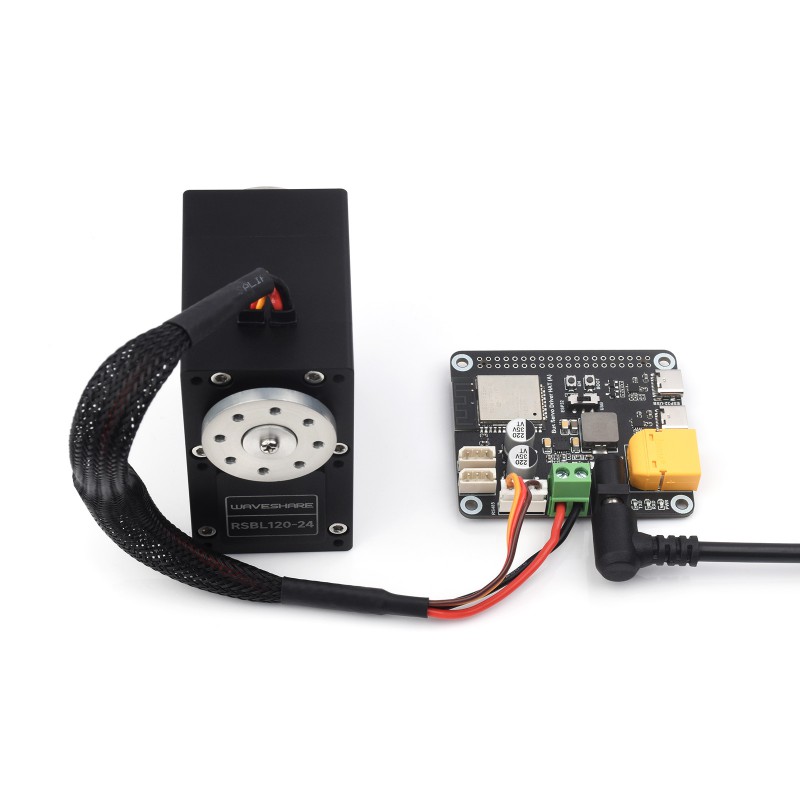

connecting with Bus Servo Driver HAT (A) drive board, we provide open-source control demo of the servo motor

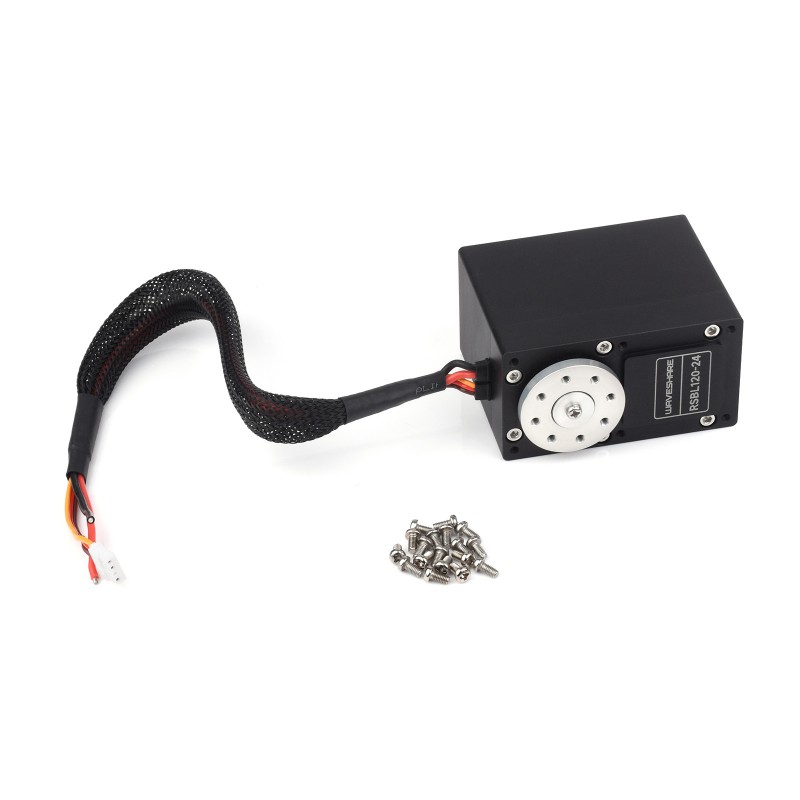

* for reference only, please refer to the Package Content for detailed part list
