A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V (Soldered Header Pins)
₹469.00 *
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: Pololu-5351
Overview A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V /... more
Product information "A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V (Soldered Header Pins)"
Overview
|
|

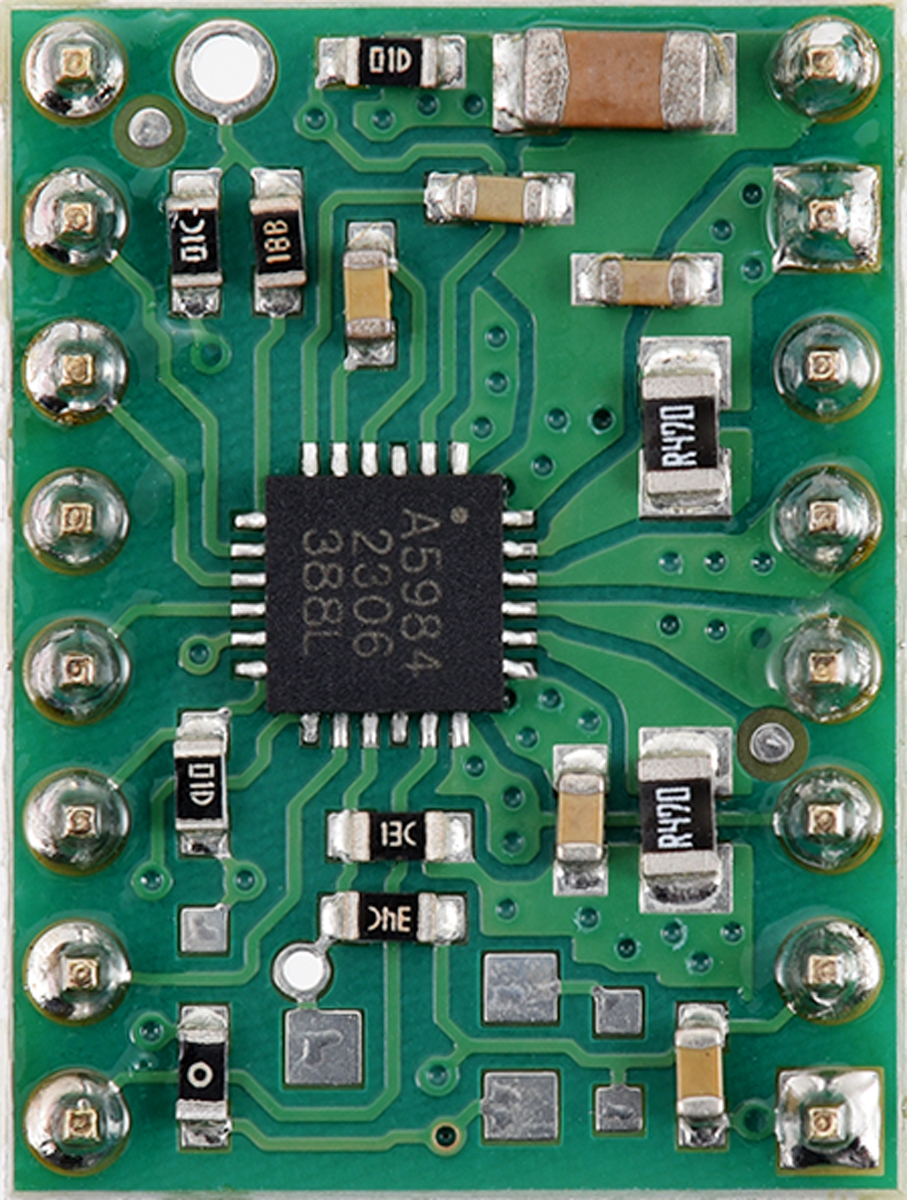

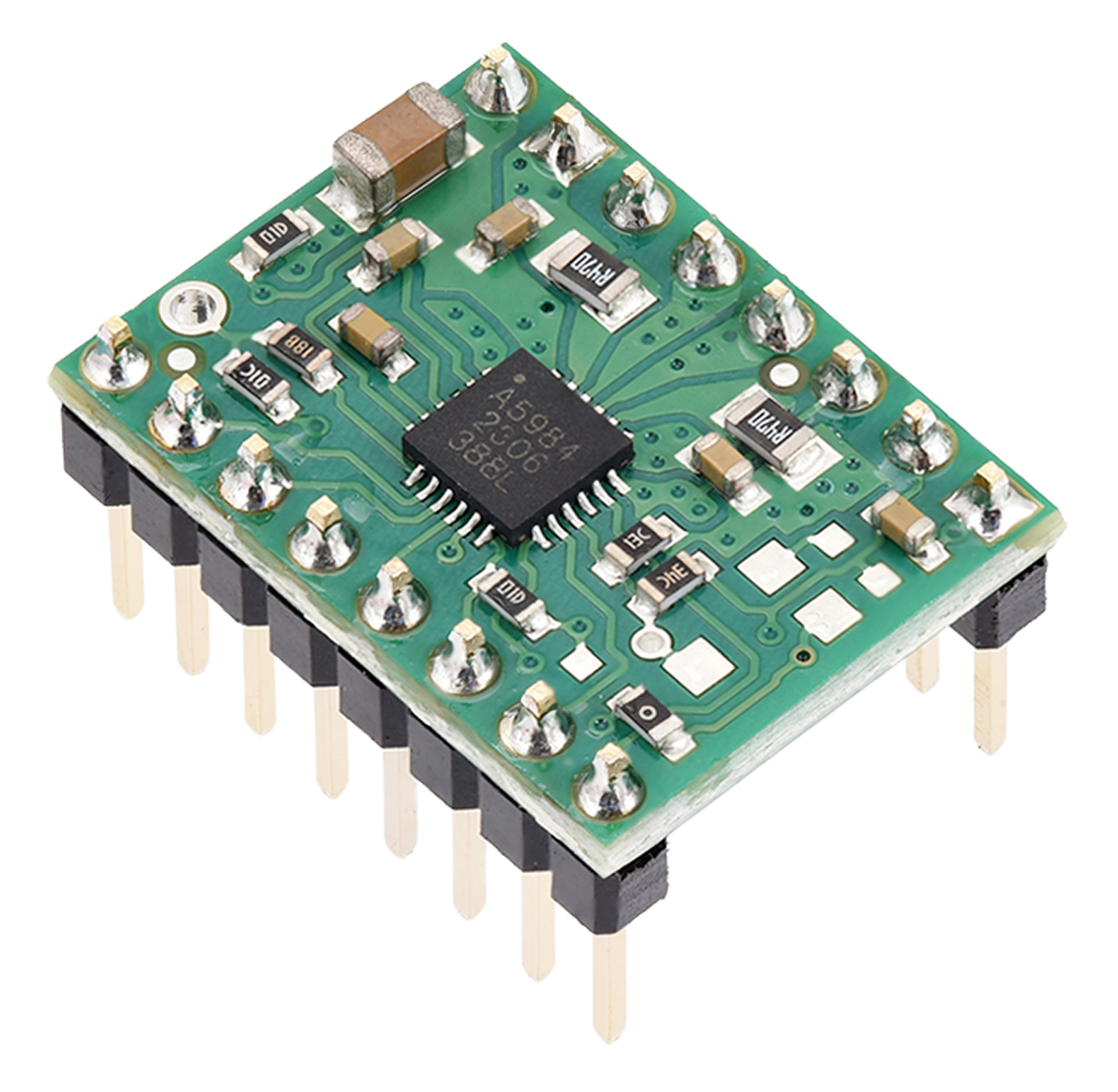

This product is the A5984 carrier with a fixed current limit of 500 mA (VDD = 5 V) or 330 mA (VDD = 3.3 V). This version has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5350: A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V, Blue Edition product page for more information about this driver.
Dimensions
| Size: | 0.6″ × 0.8″ |
|---|---|
| Weight: | 2.3 g |
General specifications
| Current limit: | fixed 500mA@5V / 330mA@3.3V |
|---|---|
| Header pins: | soldered |
Identifying markings
| PCB dev codes: | md46a |
|---|---|
| Other PCB markings: | 0J15023 |
