Phidget Interface Kit 8/8/8 -3B

₹9,209.00 *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Phidgets-1018_3B
  • 1018_3B
Description:- The Replacement of Phidget 1018_2B. The 1018 PhidgetInterfaceKit provides 8... more
Product information "Phidget Interface Kit 8/8/8 -3B"

Description:-The Replacement of Phidget 1018_2B.

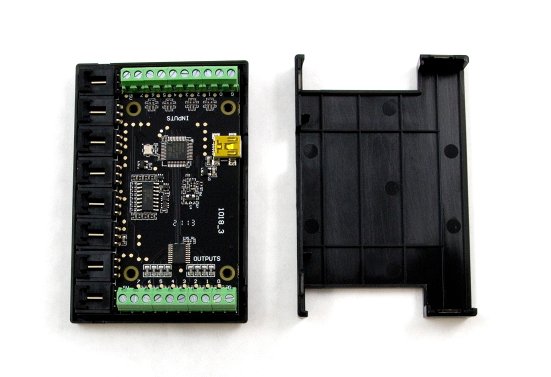

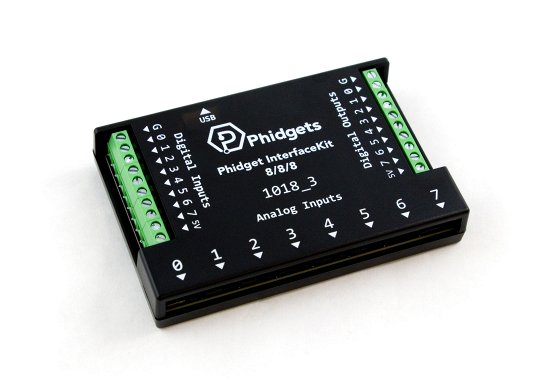

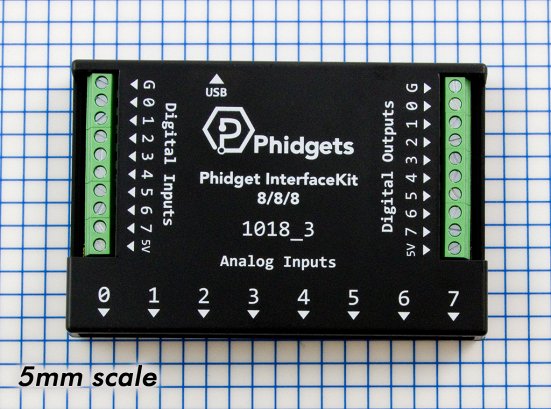

The 1018 PhidgetInterfaceKit provides 8 digital inputs, 8 digital outputs, and 8 analog inputs. This Phidget connects to your computer via USB.

Features:
Analog Inputs: measure the 0-5V signal produced by one of our many analog sensor
Digital Inputs: read the state of a switch or button
Digital Outputs: drive an LED, relay or transistor

Technical Details:
Adjustable data rate - Sampling intervals can be set as low as 1ms, or as high as 1 second.
Digital Input filtering - Hardware Filter eliminates false triggering from electrical noise.

Product Specifications:-

Board

Controlled By USB (Mini-USB)
API Object Name DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput
USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
Current Consumption Min 12 mA
Current Consumption Max 500 mA
Recommended Wire Size 16 - 26 AWG
USB Speed Full Speed
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C

Voltage Inputs

Number of Voltage Inputs 8
Voltage Resolution * 100µV - 5 mV DC
Input Impedance 1 MΩ
Input Voltage Min 0 V DC
Input Voltage Max 5.3 V DC
Sampling Interval Min ** 0.001 s/sample
Sampling Interval Max 1 s/sample

Digital Inputs

Number of Digital Inputs 8
Pull-up Resistance 15 kΩ
Low Voltage Max (True) 1 V DC
High Voltage Min (False) 1.8 V DC
Low Voltage Trigger Length Min 4 ms
High Voltage Trigger Length Min 15 ms
Digital Input Voltage Max ± 5.3 V DC
Digital Input Update Rate 125 samples/s

Digital Outputs

Number of Digital Outputs 8
Series Resistance 220 Ω
Digital Output Current Max 50 mA
Digital Output Voltage Min 0 V DC
Digital Output Voltage Max 5 V DC

Customs Information

Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin CN (China)

* - Resolution depends on data interval. The shorter the interval between samples, the worse the resolution will be down to a worst-case of 5mV.
** - Minimum sampling interval varies depending on number of open Voltage Input channels: 1ms for four or fewer open channels, and 2ms for five or more.
